LUCOLED BL31

Lucoled Plus BL31 modules offer a high quality and efficient backlit solution for lightboxes with a depth of 100-300 mm.

Using the latest Top-Tier LED technology and high quality optics Lucoled Plus series offers industry leading efficacy and coverage. This not only reduces the amount of modules needed for an application, but also the overall power consumption.

It is Lucoled’s mission to provide fit for purpose, reliable and efficient lighting solutions for visual communication and brand identity.

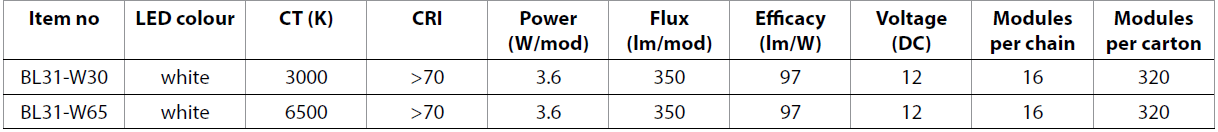

STANDARD PRODUCTS

CERTIFICATIONS

FEATURES

  • 5 years warranty First 2 years extended warranty
  • Lucolense wide beam technology
  • High efficacy
  • Constant Current Technology
  • Narrow white binning

SPECIFICATIONS

  • Dimensions 169x32x10mm
  • Warranty 5 years (first 2 years extended)
  • Beam angle: 1700
  • Can be cut between every unit
  • UL, CE and RoHS compliant
  • Narrow white binning
  • Constant Current Technology
  • Operating temperature -25~+60C

DOWNLOADS

Specsheet BL-31 English

LM INTENSITY DISTRIBUTION
